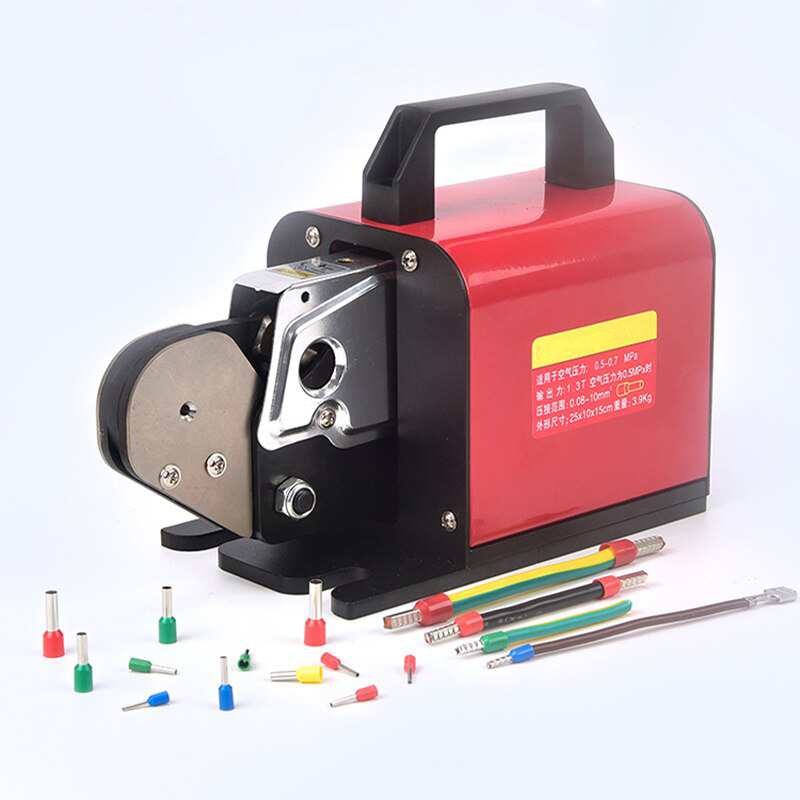

Pneumatic Tubular Terminal Crimper T6-4

High-Efficiency Pneumatic Tubular Terminal Crimping Machine - Precision Hexagonal Crimps for Tubular End Sleeves

Introduction:

Introducing the Pneumatic Tubular Terminal Crimping Machine, a high-performance solution designed for efficient and precise crimping of tubular terminals. This advanced machine, specifically engineered as a Tubular Terminal Crimping Machine, utilizes a dual-action normal cylinder drive to deliver both high efficiency and exceptional crimping quality and speed. Ideal for crimping both insulated and non-insulated cable end-sleeves, this Pneumatic Tubular Terminal Crimping Machine ensures consistent, reliable, and aesthetically pleasing hexagonal crimps.

Key Features for Superior Tubular Terminal Crimping:

The Pneumatic Tubular Terminal Crimping Machine is engineered with features to maximize performance and ease of use:

• Hexagonal Crimping for Optimal Connections: Replaces traditional fixed molds with a flexible hexagonal crimping mold, enabling superior and adaptable crimp connections for tubular insulated terminals.
• Steplessly Adjustable Crimping Specification: Offers stepless adjustment of the hexagon crimping, allowing for free setting of crimping specifications within a wide range of 0.08-6mm² cross-section, providing exceptional versatility for different terminal sizes.
• Clean and Flash-Edge Free Hexagonal Crimp Appearance: Produces terminals with a beautiful hexagonal crimp shape that is free of flash edges after crimping, ensuring professional-looking and high-quality terminations.
• Dual-Action Pneumatic Cylinder Drive: Driven by a dual-action normal cylinder, providing high efficiency and superior crimping force and speed compared to traditional mechanical systems, ensuring consistent and rapid operation.
• Suitable for Insulated and Non-Insulated Terminals: Versatile enough to crimp both insulated and non-insulated cable end-sleeves, broadening its application range across diverse wiring needs.

Wide Range of Applications Across Industries:

This Tubular Terminal Crimping Machine is ideally suited for various industries requiring reliable and precise tubular terminal crimping:

• Electronics Manufacturing: Essential for creating reliable and secure connections in electronic components and devices using tubular terminals.
• Control Panel Manufacturing: Perfect for crimping tubular terminals used in control panels and electrical enclosures, ensuring robust and long-lasting connections in industrial control systems.
• Appliance Manufacturing: Suitable for preparing wires and cables with tubular terminals in household appliances, ensuring safe and reliable electrical connections within appliances.
• Automotive Wiring Harness Assembly: Applicable for certain automotive wiring applications using tubular terminals, contributing to reliable electrical systems in vehicles.
• General Electrical Wiring Applications: Versatile enough for a wide range of electrical wiring applications that require precise and durable crimping of tubular terminals, across various sectors.

Technical Specifications for Reliable Pneumatic Performance:

• Machine Type: Pneumatic Tubular Terminal Crimping Machine
• Key Function: Tubular Terminal Crimping Machine, Pneumatic Tubular Terminal Crimping Machine, Hexagonal Crimping
• Crimping Type: Hexagonal Crimp
• Applicable Terminal Type: Tubular Terminals (Insulated and Non-Insulated)
• Crimping Range: 0.08-6mm² (Steplessly Adjustable)
• Output Force: 13.5KN (Powerful crimping force)
• Applicable Air Pressure: 0.3-0.08MPa (Operating air pressure range)
• External Dimension: 260mm * 120mm * 140mm (Compact and benchtop friendly)
• Weight: 5.52kg (Portable and easy to handle)
• Model Description: T6-4

Conclusion:

Invest in the Pneumatic Tubular Terminal Crimping Machine to revolutionize your tubular terminal crimping processes. This high-efficiency Tubular Terminal Crimping Machine delivers unmatched precision, speed, and versatility, providing superior hexagonal crimps and making it the ideal solution for maximizing your production efficiency and product quality. Contact us today to learn more about how the Pneumatic Tubular Terminal Crimping Machine can transform your wire processing line and elevate your manufacturing capabilities!
