Trimmer Line Blister Winding Machine BWM0001
Trimmer Line Blister Winding Machine BWM0001 Thumb
Play Video

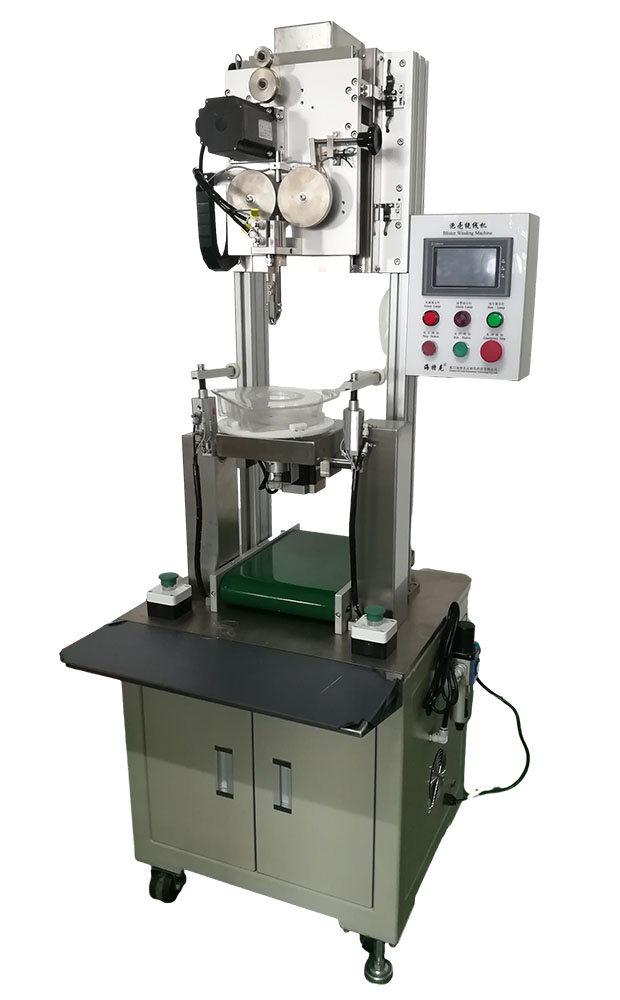

Trimmer Line Blister Winding Machine BWM0001

  • Model No: BWM0001

  • Specifications

    BWM0001-blister winding machine is mainly applied to cut fixed length and package blister of plastic filament, like grass trimming line and nylon monofilament. The machine can automatically cut, wind and feed the wire through parameter setting and PLC system
    Filament diameter：1.0～5.0 mm
    Speed of feeding：≤ 2 m/s
    Blister diameter：80～200 mm
    Hole diameter：≥ 45 mm
    Height of Blister：20～100 mm
    Production rate：6～10 Pcs/min（based15mlength）
    Operator required：1 person（can operate 2～4 units）Length of machine：650 mm
    Width of machine：550 mm
    Height of machine：1800 mm
    Weight of machine：Approx200 kg
    Power supply：1 Phase AC 220V 50Hz 2Kw
    Compressed air：0.4～0.6 Mpa1 m3/hr
  • Inquiry now


Blister Winding Machine
MACHINE CHARACTERISTIC
BWM0001-blister winding machine is mainly applied to cut fixed length and package blister of plastic filament, like grass trimming line and nylon monofilament. The machine can automatically cut, wind and feed the wire through parameter setting and PLC system, which is low manual cost and high production capacity. One person is needed to operate the machine and the production can be achieved by supplying the electricity and compressed air.
1 . Human machine interface of touch screen; central control; convenient operation; parameter setting; visual display.
2 . According to the setting parameter, the machine can automatically match the operation and count the output under the PLC system.
3 . Photoelectric detection system can automatically detect the lacking, spilling and none wire conditions and alarm and stop the production.
4 . Complete alarming and safety protecting function; double protection of electricity and machinery which is safe and reliable.
MACHINE CONFIGURATION
1 . Feeding module.
2 . Cutting module.
3 . Winding module.
4 . Traversing module.
5 . Conveyor module.
6 . Frame module.
7 . Program and electrical control system.
PRINCIPLE OF MACHINE RUNNING
1 . Feeding module feeds wire through precision wheels that driven by stepping motor.
2 . Cutting module cuts wire through alloy cutter that guided by linear guideway and driven by cylinder.
3 . Winding module driven by stepping motor and match feeding, winding and traversing motion.
4 . Conveyor module discharges blisters through convey belt that driven by electric roller.
PROVIDED TECHNICAL DRAWING
1 . Operation manual.
2 . Machine assembly drawing.
3 . Pneumatic and control drawing.
4 . Electrical and control drawing.
5 . Spare parts and wearing parts list.

MACHINE BASIC PARAMETER
filament diameter：1.0～5.0 mm
Speed of feeding：≤ 2 m/s
Blister diameter：80～200 mm
Hole diameter：≥ 45 mm
Height of Blister：20～100 mm
Production rate：6～10 Pcs/min（based15mlength）
Operator required：1 person（can operate 2～4 units）Length of machine：650 mm
Width of machine：550 mm
Height of machine：1800 mm
Weight of machine：Approx200 kg
Power supply：1 Phase AC 220V 50Hz 2Kw
Compressed air：0.4～0.6 Mpa1 m3/hr
