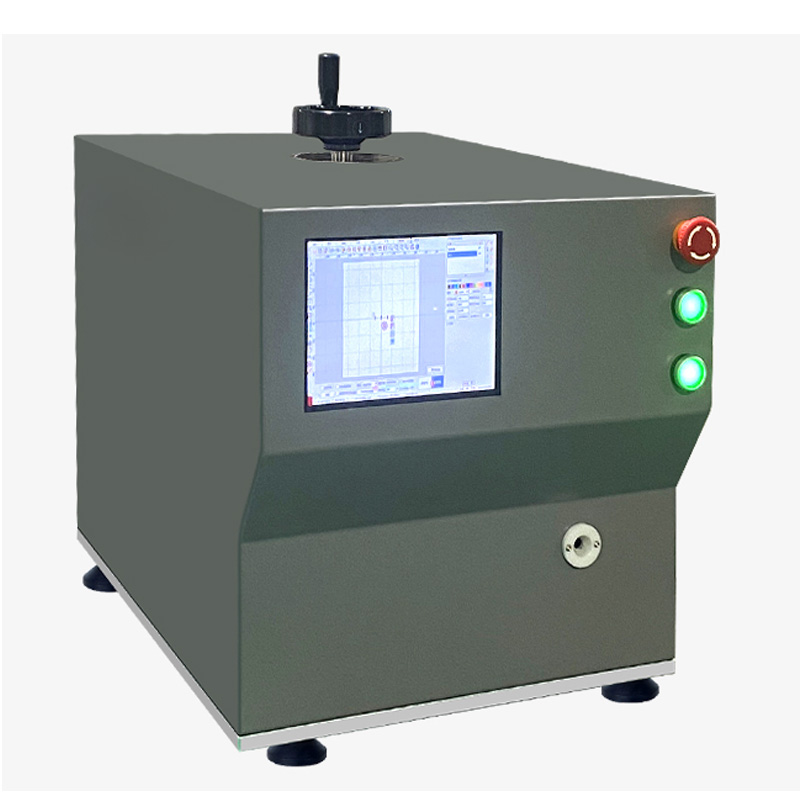

Product Name: Desktop Rotary Cutting Laser Wire Stripping Machine
Equipment Purpose

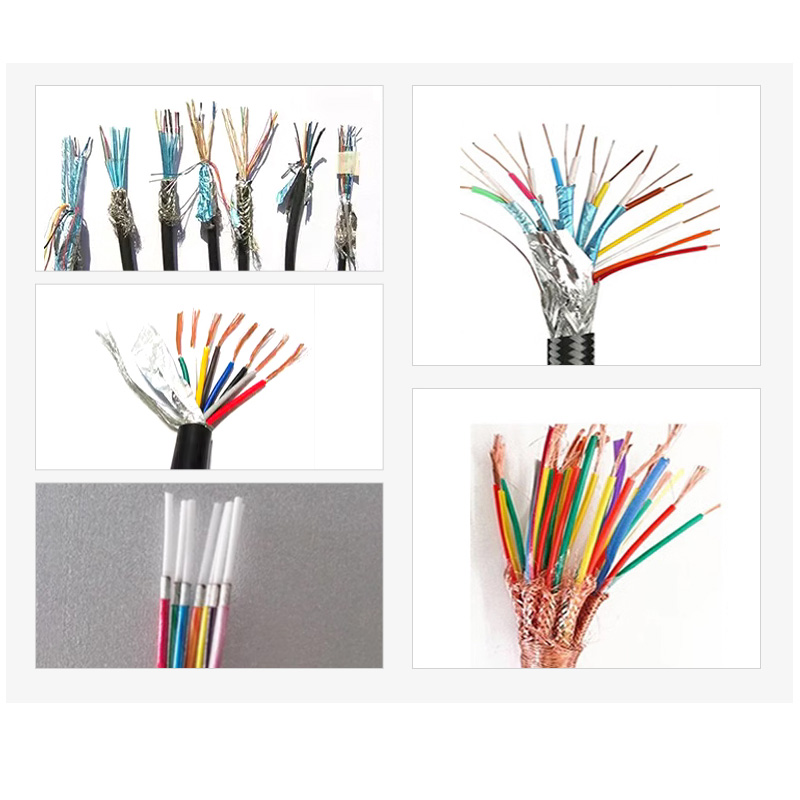

This equipment is equipped with a fiber laser and performs precise rotary circular cutting applications. It uses a galvanometer + rotating shaft to complete a full circular cut, enabling one-time wire stripping for multiple strands. The pneumatic chuck facilitates the replacement of products with different wire diameters. It is commonly used for precise wire stripping of shielded wires and is widely applied in the communication field, medical equipment field, and industrial automation field.
Equipment Features
• Precision Focus: The minimum spot can reach 0.01MM, depending on the material.
• The 1064nm wavelength laser has a high absorption rate for metals, so it hardly damages the wire sheath.
Shipping Accessories List
| Name | Quantity | Name | Quantity |
| Laser | ×1 | Touch Screen Integrated Machine | ×1 |
| Power Cord | ×1 | Air Pipe | ×1 |
| Tools | ×1 | Wireless Keyboard and Mouse | ×1 |
| Foot Switch | ×1 | Instruction Manual | ×1 |

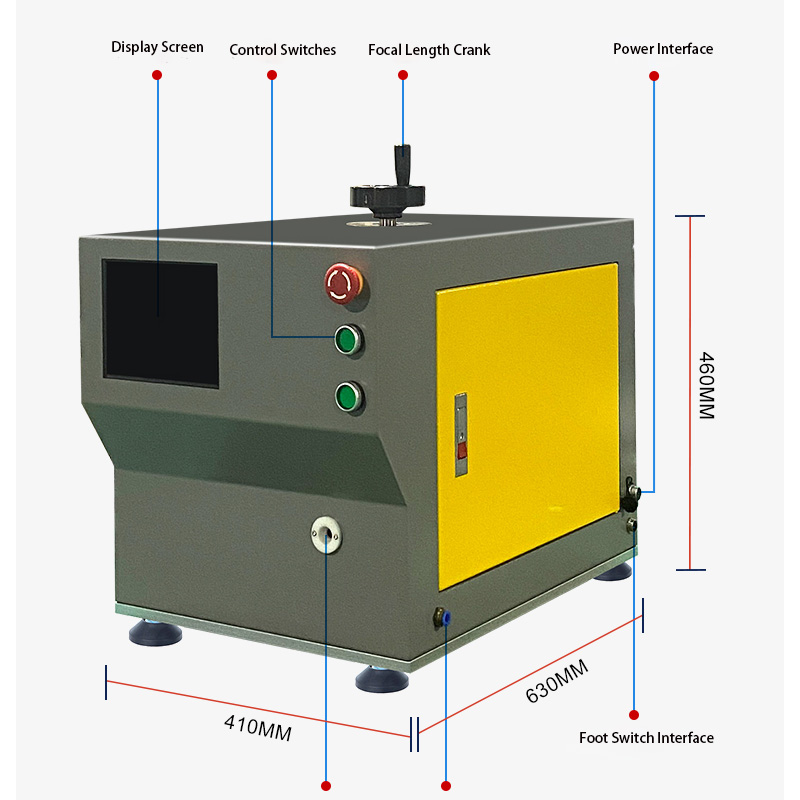

Mechanical Components
• Display Screen, Control Switch, Focal Length Crank, Power Interface
• Wire Stripping Port, Air Pipe Interface, Foot Switch Interface
• Product Dimensions: 410×630×460MM
Product Parameters
| Item | Parameter |
| Product Name | Desktop Rotary Cutting Laser Wire Stripping Machine |
| Product Model | FLS30-XC |
| Laser Power | 30W |
| Laser Wavelength | 1064NM |
| Working Method | Automatic Rotary Circular Cutting |
| Circular Cutting Speed | <2S |
| Positioning Accuracy | ≤0.2 |
| Repeat Positioning Accuracy | ≤0.005 |
| Weight | 60KG |
| Product Dimensions | 410×630×460MM |
| Wire Stripping Length | 8-46MM |
| Laser Type | Fiber Laser |
Packing List, Dimensions and Weight Description
• Main Machine ×1
• Power Cord ×1
• Tools ×1
• Outer Packaging Dimensions: 700MM×500MM×550MM (as shown)
•
Total Weight: 72Kg
